16V 1.3 L Engine Cylinder Head For TOYOTA Lexus Yaris 1NR 1NR-FE

Engine Cylinder Head For TOYOTA Lexus Yaris 1NR 1NR-FE 16V 1.3 L

Apply :

Toyota Auris

Toyota Avanza[1]

Toyota Corolla

Toyota Corolla Axio (NRE160) (Japan)

Toyota iQ

Toyota Ractis

Toyota Urban Cruiser

Toyota Verso-S

Toyota Yaris

Technical specifiions of the engine:

Displacement: 1,329 cc (81.1 cu in)

Bore x Stroke: 72.5 mm × 80.5 mm (2.85 in × 3.17 in)

Max. Output: Euro 4 Version: 74 kW (99 bhp) at 6000 rpm, Euro 5 Version: 73 kW (98 bhp) at 6000 rpm,

Indonesia Euro 3 Version: 72 kW (97 bhp) at 6000 rpm

Max. Torque: Euro 4 Version: 132 N·m (97.4 lb·ft) at 3800 rpm,

Euro 5 Version: 128 N·m (94.4 lb·ft) at 3800 rpm, Indonesia Euro 3 Version: 120 N·m (88.5 lb·ft)

Compression Ratio: 11.5:1; Indonesia Euro 3 Version: 10.5:1

Valve Mechanism: 16-valve DOHC, Chain Drive (with Dual VVT-i)

Fuel Injection System: EFI

Ignition System: Direct Ignition System

Emission Regulation: Euro 4 (Complies with Euro 5 after optimizations introduced in July 2010)

Engine Service Mass (incl. coolant & oil): 89.5 kg (197 lb)

6200 RPM Red Line

aluminum cylinder heads

high performance cylinder heads

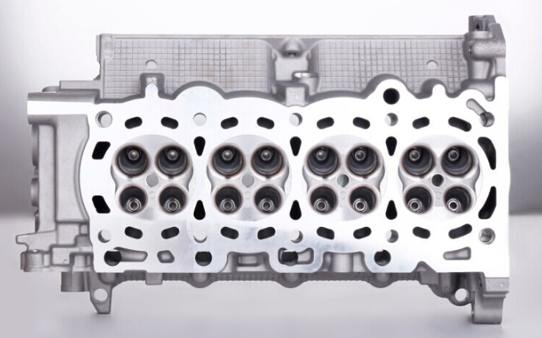

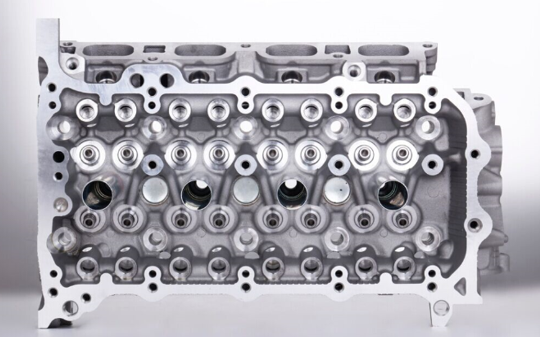

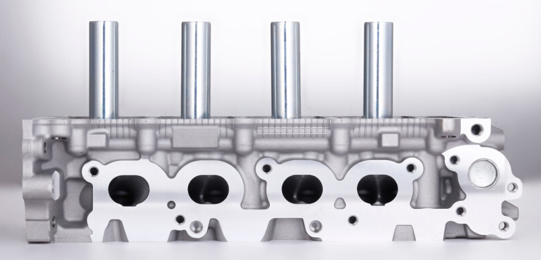

16V 1.3 L Engine Cylinder Head For TOYOTA Lexus Yaris 1NR 1NR-FE Images
